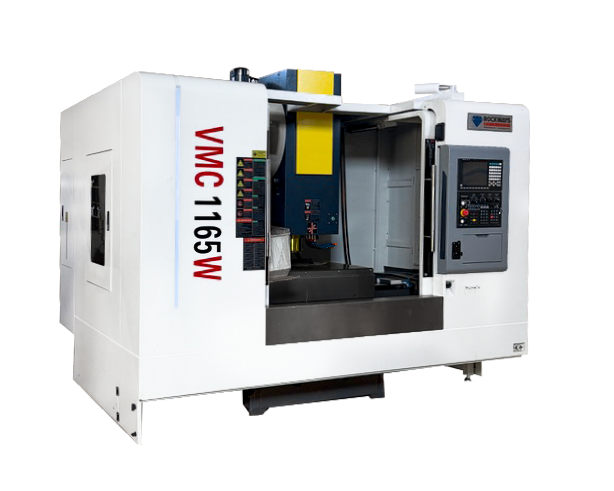

Product Description
Details
Standard Configuration:
- Syntec 22MA control system
- 24 arm type tools changer
- 3-axis HIWIN linear guide rail
- Taiwan BT40 spindle (8000/10000 (30Min) rpm)
- Spindle oil cooler
- Auto cooling system
- Auto lubrication system
- Spindle ring cooling

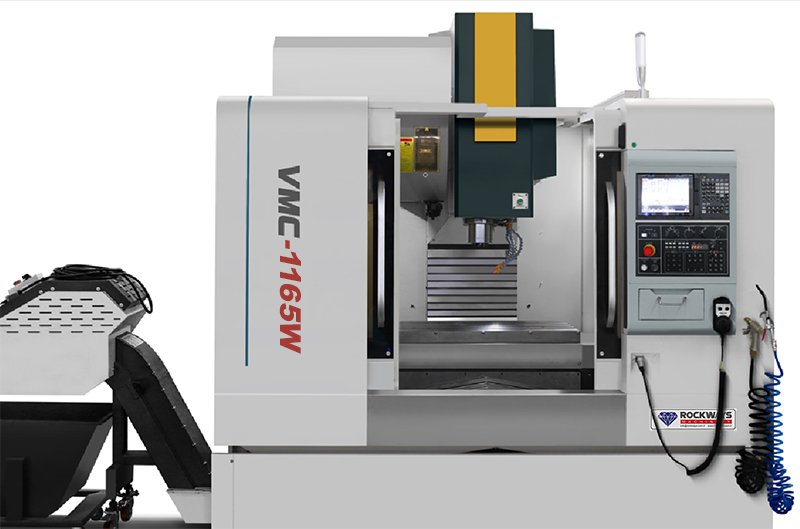

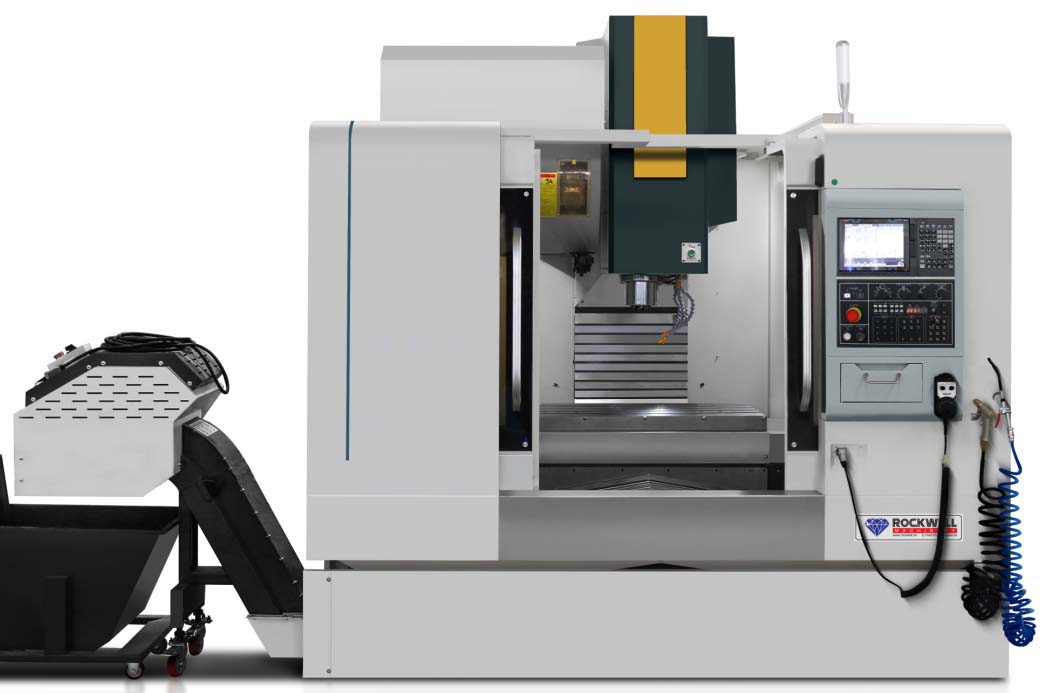

- Auto chip conveyor
Features:
- High-quality resin sand Taiwan spindle
- Taiwan ball screw and locking nut
- Taiwan pressure cylinder Automatic lubrication system
Application:
A VMC suitable for mechanical processing and mold making. Moreover, it can adapt to the processing requirements of various systems, such as rough and finish machining. Furthermore, it can execute numerous procedures such as milling, drilling, tapping, boring, etc.
Optional:
250mm 4th axis with manual tailstock
Product Specifications
| Working Area |
X axis |
mm | 1100 |
|---|---|---|---|
|
Y axis |
mm |
650 Spindle axis to column surface: 665mm |
|
| Z axis |
mm |
600 Moving range: 120 - 720mm |
|
| Table Size | mm |
600x1200 |
|
| Max. Worktable Load | KGs |
1200 |
|
| Guide Rail Type | / |
Linear Rail |
|
| Speed |
Maximum cutting speed X/Y/Z |
m/min | 8/8/8 |
|
Fast movement speed X/Y/Z |
m/min | 24/24/20 | |
|
Spindle maximum speed |
rpm | 10000 | |
|
Spindle power |
KW | 11 | |
|
Spindle taper hole |
/ | BT40 | |
| Tool Magazine |
Tool magazine capacity |
/ | 24 pcs ISO40 |
|
Maximum tool diameter |
mm | Φ78/Φ120 | |
|
Maximum tool weight |
KG | 8 | |
| Accuracy |
Positioning accuracy |
mm | 0.02 |
|
Repeatability |
mm | 0.005 | |
|
Control system |
/ | SYNTEC 22M | |
|
Weight |
T | 7 | |
|
Size |
mm | 2600x2500x2900 |
