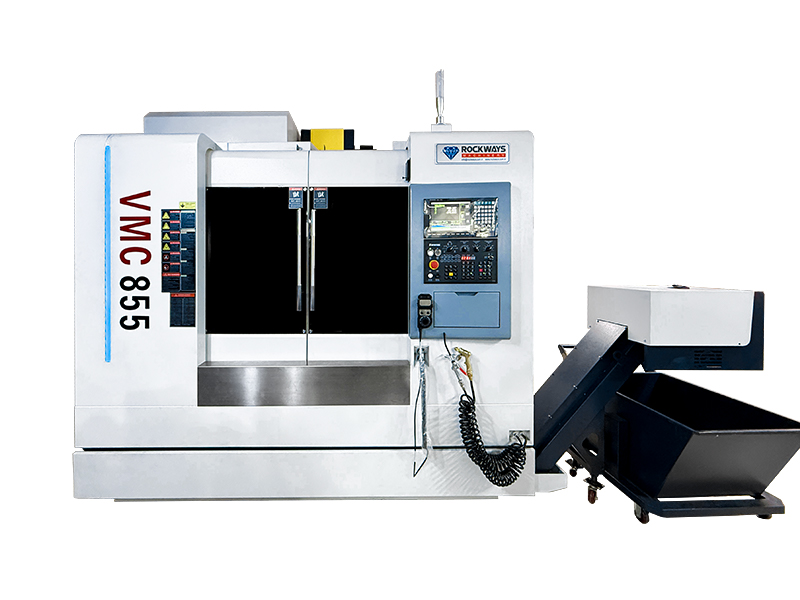

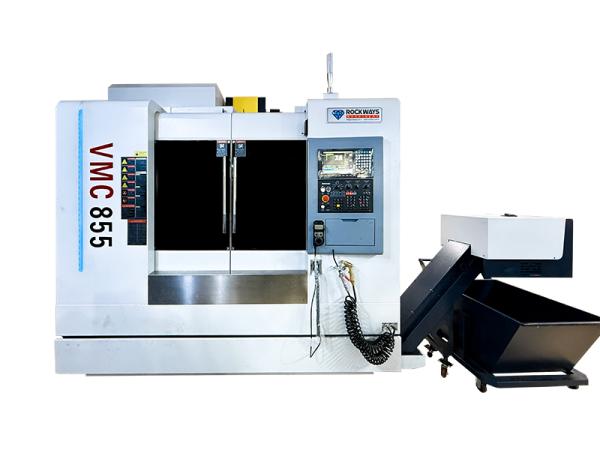

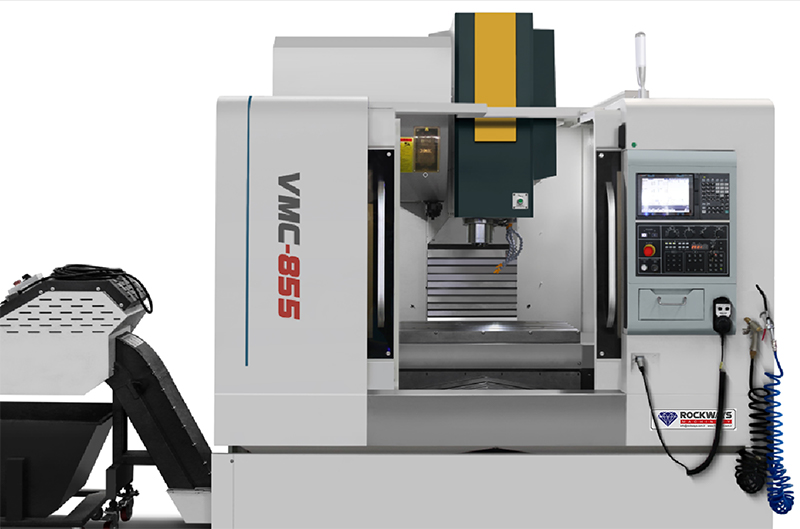

Product Description
Details
Standard Configuration:
- Syntec 22MA control system
- 24 arm type tools changer
- 3-axis HIWIN linear guide rail
- Taiwan BT40 spindle 10000rpm
- Spindle oil cooler
- Auto cooling system
- Auto lubrication system
- Taiwan Ballscrew
- Spindle ring cooling
Features:
- High-quality resin sand Taiwan spindle
- Taiwan ballscrew and locking nut
- Taiwan pressure cylinder Automatic lubrication system
Application:
A VMC suitable for mechanical processing and mold making. Moreover, it can adapt to the processing requirements of various systems, such as rough and finish machining. Furthermore, it can execute numerous procedures such as milling, drilling, tapping, boring, etc.
Product Specifications
| Working Area |
X axis |
mm | 800 |
|---|---|---|---|
|
Y axis |
mm |
550 Spindle axis to column surface: 590mm |
|
| Z axis |
mm |
550 Moving range: 120 - 670mm |
|
| Table Size | mm |
1000x550 |
|
| Max. Worktable Load | KGs |
600 |
|
| Guide Rail Type | / |
Linear Rail |
|
| Speed |
Maximum cutting speed X/Y/Z |
m/min | 8/8/8 |
|
Fast movement speed X/Y/Z |
m/min | 24/24/20 | |
|
Spindle maximum speed |
rpm | 10000 | |
|
Spindle power |
KW | 7.5 | |
|
Spindle taper hole |
/ | BT40 | |
| Tool Magazine |
Tool magazine capacity |
24 pcs ISO40 | |
|
Maximum tool diameter |
mm | Φ78/Φ120 | |
|
Maximum tool weight |
KG | 8 | |
| Accuracy |
Positioning accuracy |
mm | 0.02 |
|
Repeatability |
mm | 0.005 | |
|
Control system |
/ | SYNTEC610 | |
|
Weight |
T | 5,5 | |
|
Size |
mm | 2700x2350x2480 |
